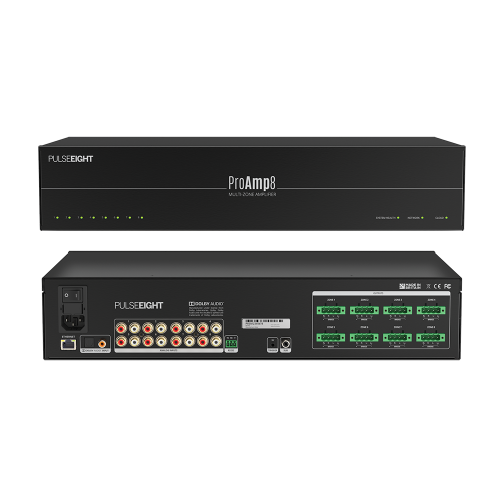

Pulse-Eight Multi-Channel Amplifier with DSP

Product Information

The Pulse-Eight PROAMP-8 has been designed and manufactured in-house and becomes the perfect partner for neo video matrixes and ProAudio DSP pre-amps.

The PROAMP-8 includes features such as Web UI, built-in subwoofer control, 12V trigger and DSP controls. Plus, supporting Dolby Audio and enabling a home theatre zone to be created alongside your multi-room audio all in one system.

******************************
NOT A MATRIX AMP
Best suited with a Proaudio8 or 16.
For ELAN dealers a EL-IPD-PRE-MSI
******************************

Connectivity
AUDIO INPUT ZONES: 16x Analog Inputs (8x Stereo L/R Channels), 1x Digital S/PDIF (Coax/Optical) with Dolby 5.1 Support
AUDIO OUTPUT ZONES: 8x Stereo Phoenix Connectors (configurable)
12V TRIGGERS: 1x 3.5mm (Input)

Special Features
LIP SYNC DELAY: Up to 50ms per zone
VOLUME ADJUSTMENTS: Range: 0 – 100. Adjustable (Full Range: -99.5dB to +24dB)
EQUALIZER: 5 band EQ (Dolby zone only)
SUBWOOFER CONTROL: Yes
REMOTE MONITORING: Yes
Control: IP CONTROL Yes - via TCP/IP
SERIAL CONTROL: Yes - RS232 Phoenix
WEB INTERFACE / ANDROID APP: Yes

Features

8-Zone Power Amplifier, driven by ICEpower modules, delivering up to 100 watts of high-quality sound per channel.

8 Stereo (L/R) analogue inputs and 1 digital (coax/optical) input with Dolby support.

Bridgeable outputs zones to create flexible power configurations.

Full Dolby Zone DSP and Equalizer (EQ) control.

Fault detection and system reset protects the amplifier and connected speakers from damage.

Low-energy consumption when the amplifier is in standby and not in use.

Automatic sensing and 12V Trigger options for efficient energy saving with a fast wake-up.

Includes user-friendly WebUI control access.

Easy integration with third-party control systems.

1x Dolby 5.1 SPDIF Input mappable to 6 surround sound channels or stereo-down mixing

1x RCA Subwoofer Line Level Output

Full DSP Control

8x Stereo L/R Inputs

8x Stereo Phoenix Connector Outputs

Bridge Mode

RS232

12V Trigger

Web Interface

Built In Britain

Resources

Pro Amp8 Data Sheet

Warranty

SILVER - 3 Year Warranty, 1 Year Advanced Replacement + 2 Years return to factory for repair
